Downspouts moved underground — Beddington Heights, Calgary

The downspouts here ran through a black flex hose lying on the lawn. We buried them in rigid SDR 35 PVC, added a French drain along the garage and rebuilt the yard around them.

Get a Free Quote

Spring 2027 booking

We’re booking spring 2027: get measured and quoted now. For every service except fence, your quoted price holds for a spring install and there’s no deposit until spring. A quote written from December holds once you approve it, unless the scope or material costs change. Local Lawns is booked out for fall 2026.

Get a spring 2027 quote →

Before & after

Flex hose to buried SDR 35 in Beddington Heights

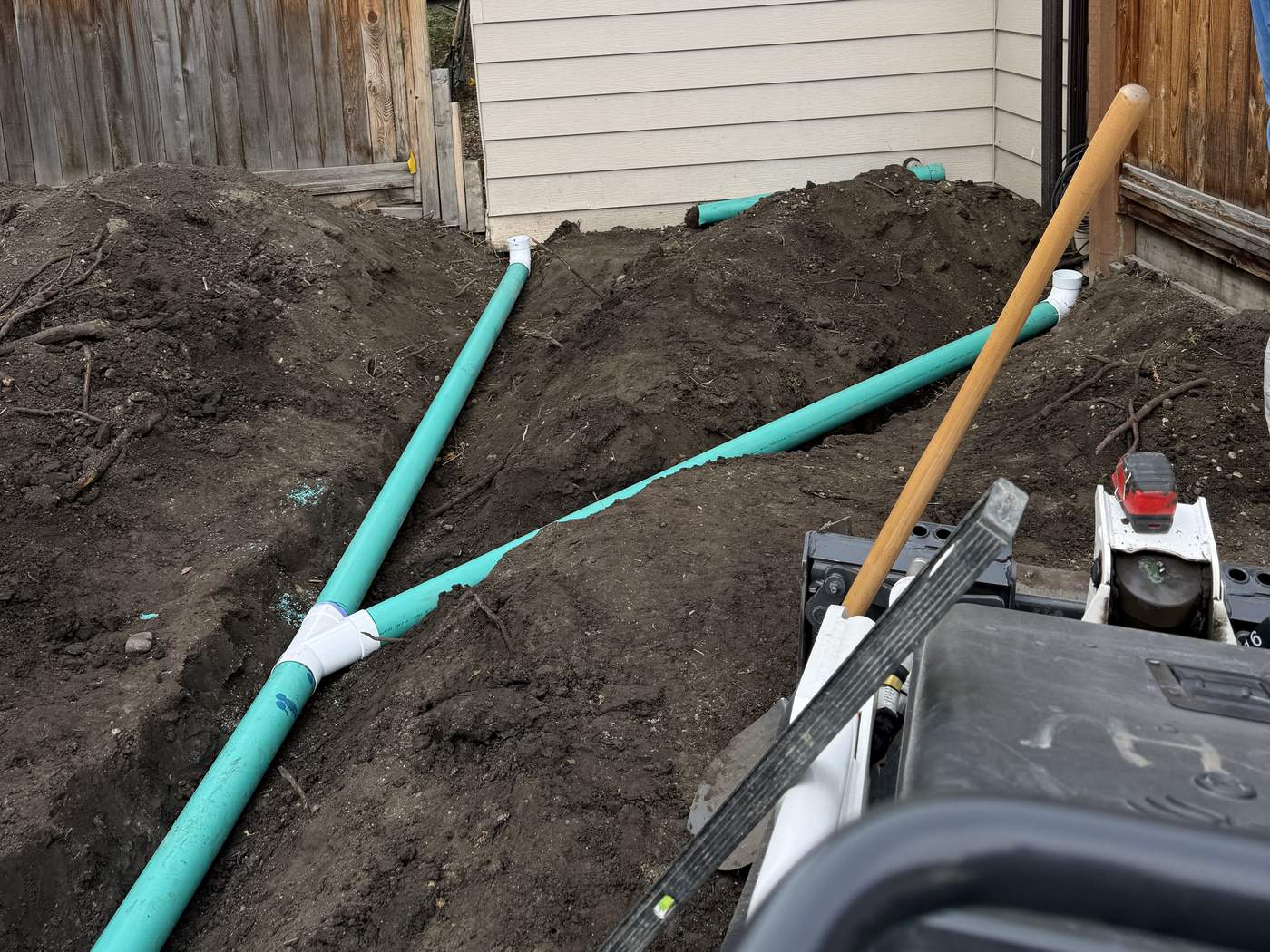

Two green SDR 35 PVC downspout lines joined at a white wye fitting in an open trench beside the house — Beddington Heights · underground downspouts · two SDR 35 lines joined at a wye, before backfill

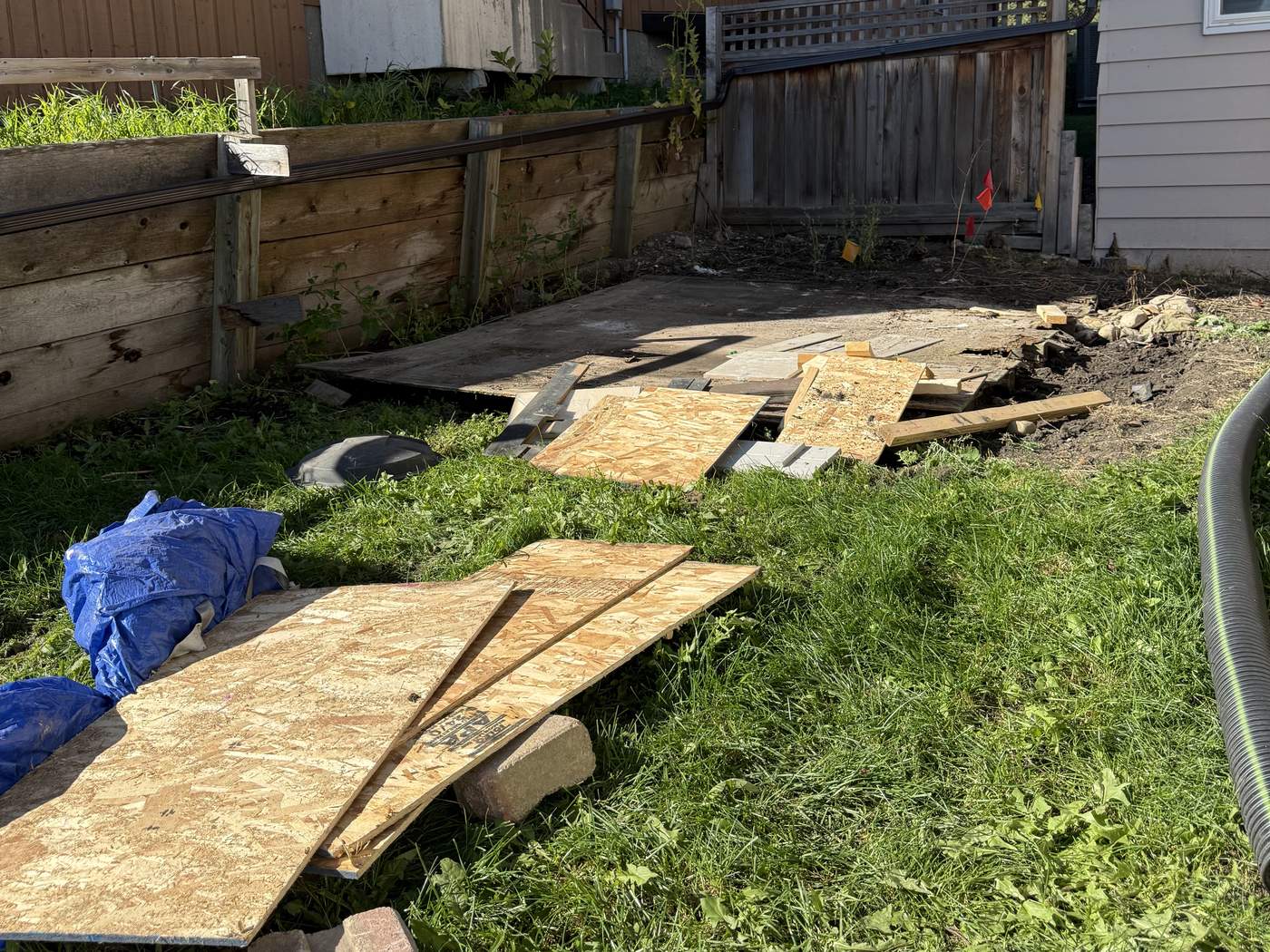

Beddington Heights back yard before the work: worn lawn, plywood and debris from the old shed, and a black flex downspout hose

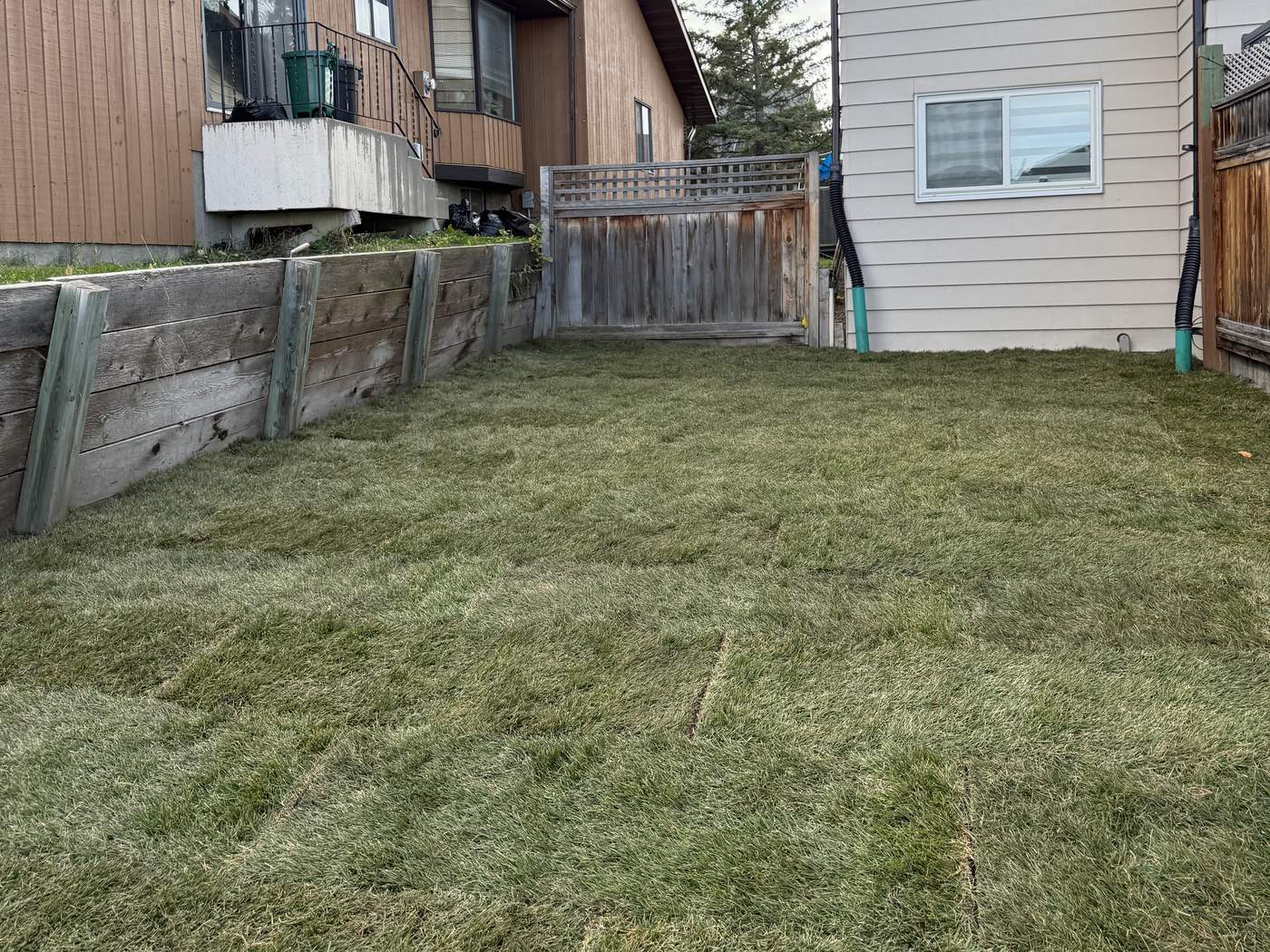

The same back yard after: new sod from the retaining wall to the house, downspouts running into buried SDR 35 PVC — Beddington Heights · underground downspouts, sod · flex hose on the lawn to buried pipe

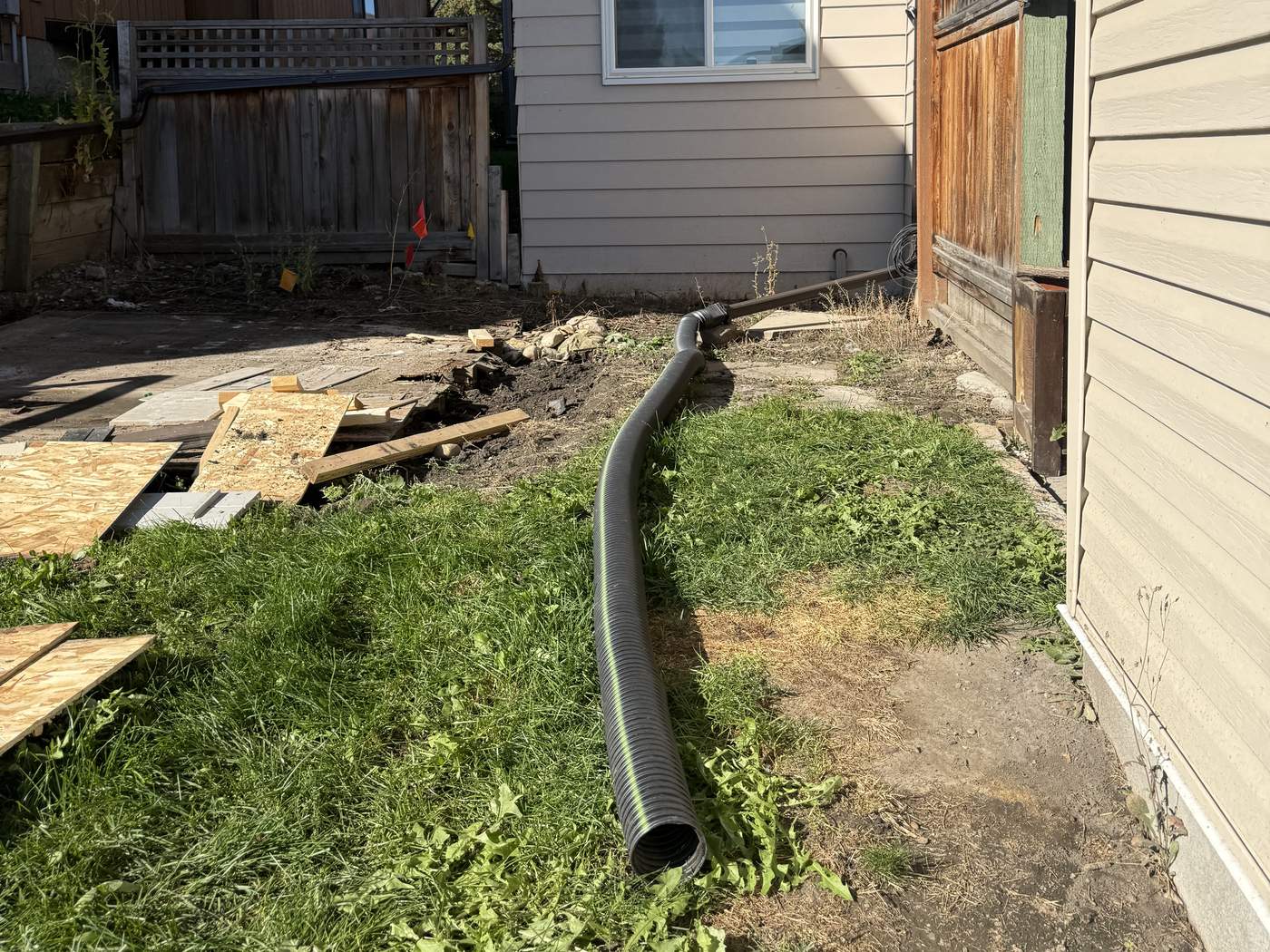

A black corrugated downspout extension lying across the lawn at the back corner of the house — Beddington Heights · before · the old corrugated flex hose, since replaced with buried SDR 35

Before the work, the downspouts at the back corner of this house emptied through a black corrugated extension lying across the lawn. A hose like that gets stepped on, crushed and moved, and its ridged walls catch grit.

We replaced it with SDR 35, rigid smooth-walled PVC drain pipe, and buried it. Then we rebuilt the yard on top: a French drain along the garage, a paver path with rock, two paver tire strips for parking, and a new lawn after the old shed came out.

Updated October 24, 2026

Scope: downspouts, French drain, pavers and sod

Neighbourhood: Beddington Heights, NW Calgary
Services performed: Underground downspout extensions in SDR 35 PVC, French drain, paver pathway and rock, paver tire strips, shed and fence-section removal, sod

How we buried the downspouts and rebuilt the yard

Clear. Took out the old shed, a fence section and the worn lawn, and hauled it all away.
Trench. Dug the downspout lines and the French drain trench with our Bobcat MT100.
Lay SDR 35. Ran the downspouts in rigid SDR 35 PVC, joining two lines at a wye, on a steady fall so the water keeps moving.
French drain. About 26 feet along the garage: non-woven geotextile, drainage rock and perforated pipe, sloped to its discharge point.
Backfill & grade. Backfilled the trenches and graded the yard so water moves away from the house.
Hardscape. Built the paver path, set rock beside the garage and deck, and set two paver tire strips on a compacted aggregate base with bedding.
Sod. Spread topsoil and laid sod between the tire strips and across the yard, finished flush around the downspout connections.

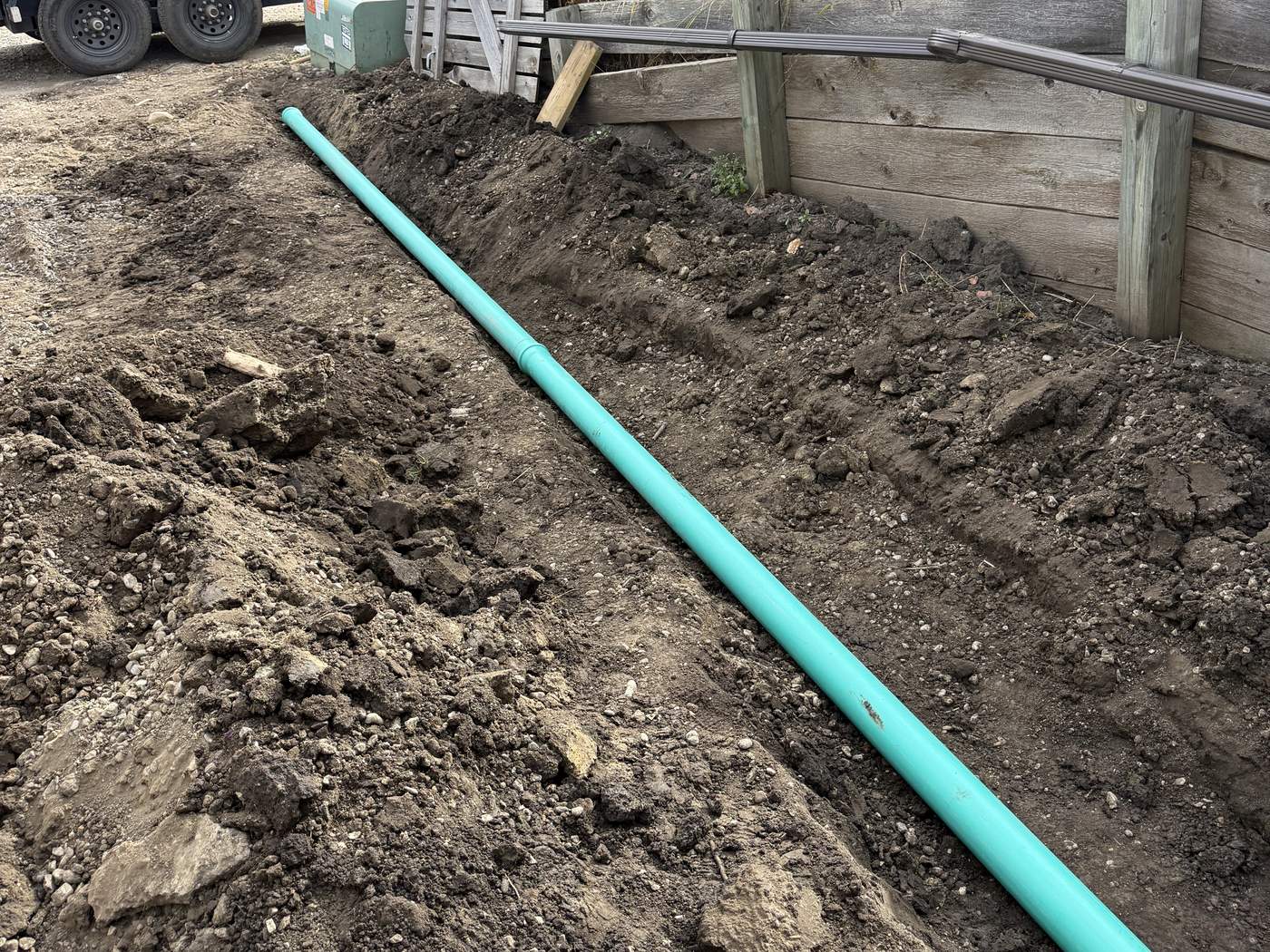

A straight run of green SDR 35 PVC pipe laid in a trench along a wooden retaining wall — A straight SDR 35 run along the retaining wall, before backfill

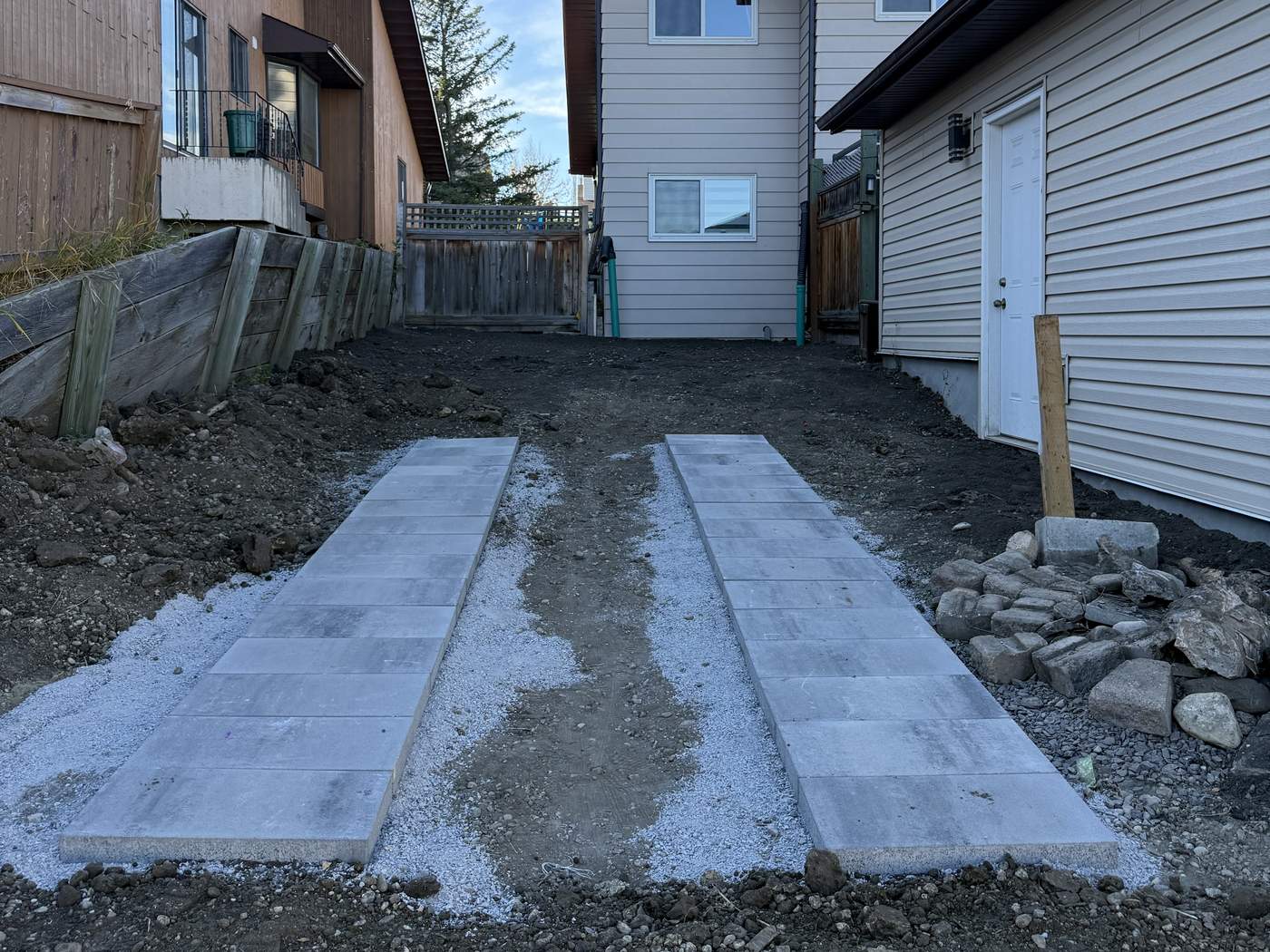

Two rows of pavers for vehicle tires set on a compacted gravel base, bare soil around them before sod — The tire strips on their compacted base, before the sod went in

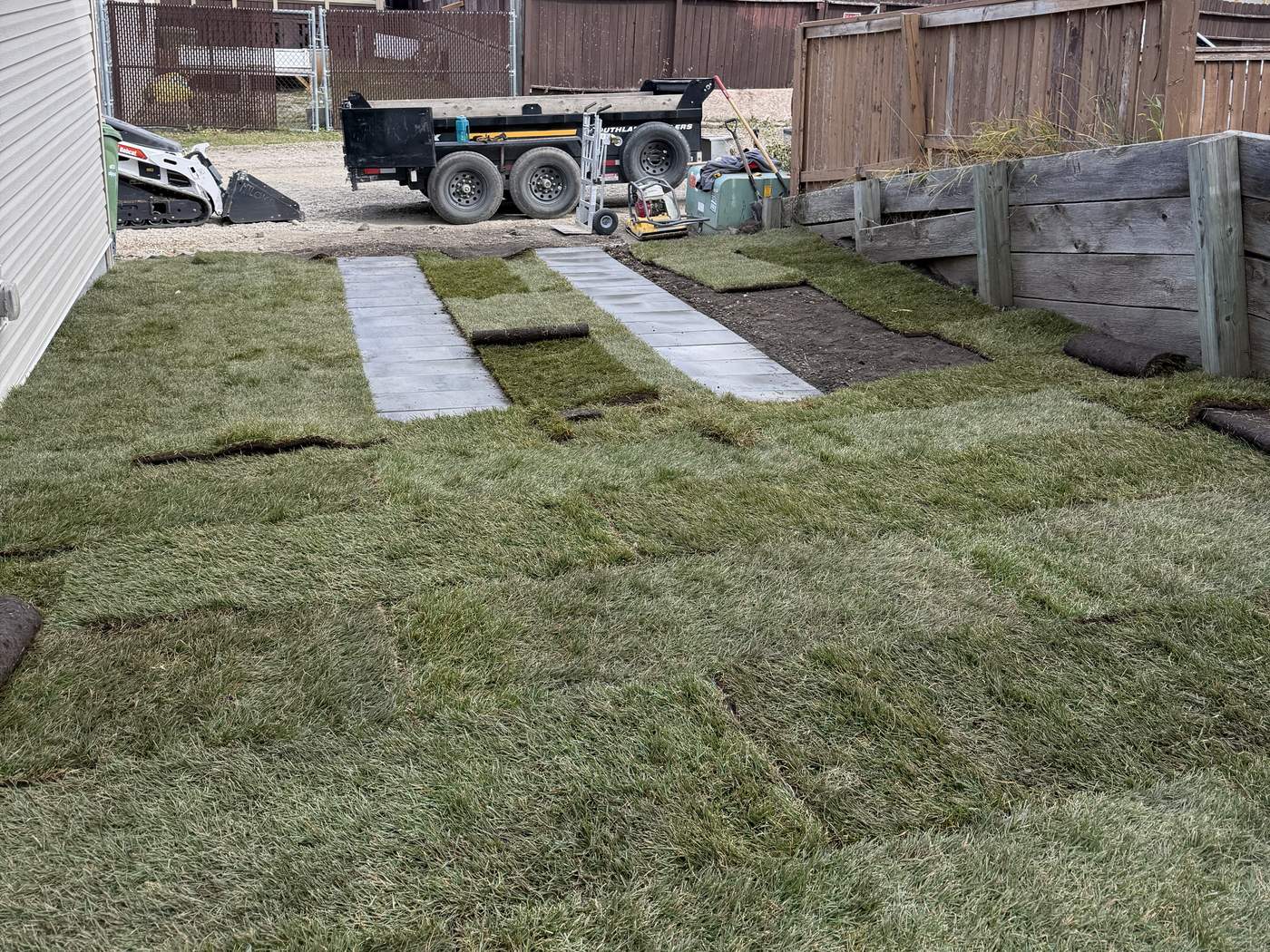

New sod being laid around two paver tire strips, with our Bobcat and dump trailer in the lane behind — Sod going in around the tire strips, our Bobcat and dump trailer in the lane

Materials: SDR 35 PVC, drain rock, pavers and sod

SDR 35 PVC drain pipe and fittings
Perforated drain pipe, non-woven geotextile and drainage rock
Pavers, compacted aggregate base and bedding
Rock
Topsoil and sod

Tell us about the yard. We aim to call back within one business day, measure within a few days, then send a fixed written price. Under snow, we quote from plans and photos and confirm the measure at the thaw.

Get a free quote

5.0 on Google (16 reviews) WCB covered & insured

Equipment: Bobcat MT100 and dump trailer

Bobcat MT100 track loader, dump trailer, hand tools.

Result: roof water carried away underground

Both downspouts at the back corner now drop straight into buried pipe at the wall, with the sod finished flush around them. There's no hose on the lawn to trip over or crush, and the roof water travels underground in pipe that holds its slope. The tire strips, path and new lawn finish the yard on top, built the same strip-and-rebuild way we replace a failing lawn.

Downspouts moved underground — Beddington Heights, Calgary: common questions

What is SDR 35 pipe, and why use it for downspouts?

SDR 35 is rigid PVC sewer and drain pipe; the number is the ratio of the pipe's outside diameter to its wall thickness. It is smooth inside, so water and grit keep moving, and stiff, so a buried line holds the slope it was laid at. A corrugated flex hose has ridged walls that catch grit and can sag or crush in the ground. For a line under a lawn, rigid pipe is the one we'd want there in ten years.

Do downspout extensions need a French drain too?

Not always. A downspout extension carries roof water away; a French drain collects water that sits in the ground or runs across the surface. This yard needed both: the downspouts at the back corner and the drain along the garage. The drainage page explains how we tell which a yard needs.
